SATA Gaming PC

Parameters：

Intel Alder Lake-N100 Processor: 4Cores 4Threads, Max Turbo Frequency: 3.40GHz, 6 MB Intel Smart Cache, TDP: 6W.

Memory: 1x SO-DIMM DDR4-3200, supports a single channel up to 32GB for maximum memory capacity.

GPU: Integrated Graphics based on CPU, display via 2x HDMI2.0b (Support HDCP2.2)

Storage: 1 x M.2 Key B slot, supports 2242/2280 SATA SSD, 1x FPC SATA3.0 interface

USB: 3x USB3.2 Gen 2, 1x USB2.0

Type C: 1xUSB-C Full-functioned (supports USB3.2 Gen 2 upstream/Display Port 1.4 Alt Mode).

Ethernet: Two RTL8125BG-CG Network Controllers on-board, Data Rate Per Port: 2.5Gbps

Audio: High-Definition Realtek Audio Codec,1xCTIA Audio Jack, supports Line-out+Mic-in.

Expansion: 1x M.2_Key E type 2230 for Wi-Fi Modules (supports PCIe/USB2/CNVi)
Other I/O: 1x FP_PWON Power button optional for remote wired control switch, 1x FPC RS232 COM header optional (Serial Port).

Board Dimension: 120mm x 120 mm

Chassis Dimension:127mm x 127mm x 45.6mm

Power: 12V DC-in

Working Temperature: -20℃~60℃

what’s In The Box

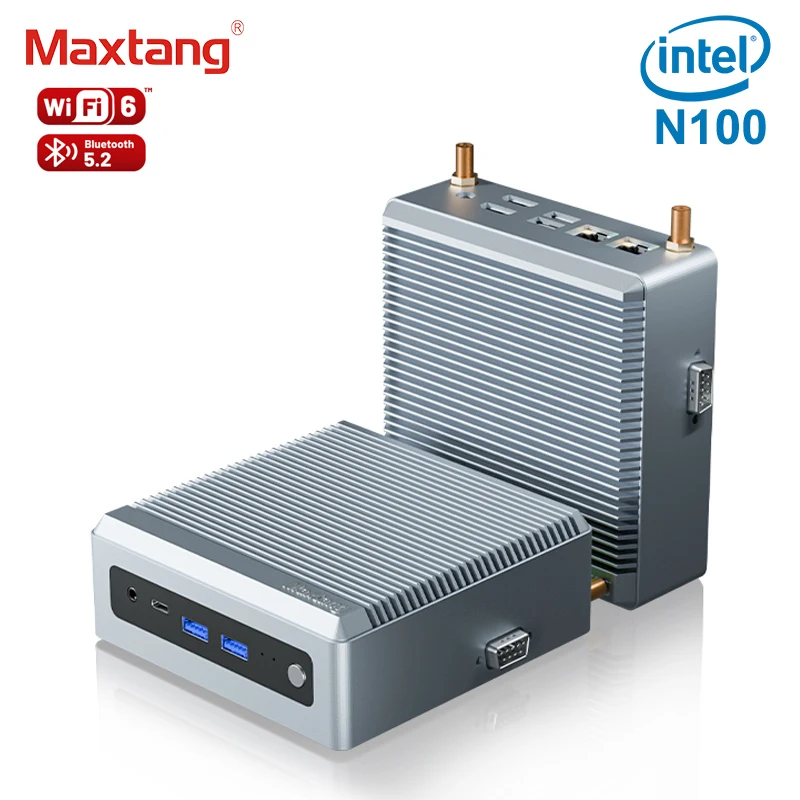

1 x Maxtang Mini PC NX-N100
1 x Power Adapter&Cable
1 X HDMI Cable
1 x Wall-mounted Bracket
NOTE:If you have any component needs please remark or inquire us when placing the order.

About Maxtang

About quality & after-sales:
All the products shipped by Maxtang have gone through a series of strict tests and the quality is strictly guaranteed. If there is any problem when you receive the product, please contact us at the first time, we will solve it for you at the first time.

About Operation System:
All products with RAM & SSD are pre-installed with WiFi, OS, Bluetooth.Language default English, if you need to specify language or system, please contact our customer service.

About Shipping Days：
All of Maxtang’s products are shipped from our warehouse in China, and we will process and dispatch your order within 1-3 business days, ensuring you can start enjoying your purchase promptly.

About the warranty:
All products we provide 1-2 years warranty service, please rest assured to use, if there is any problem we will arrange professional staff to solve it for you.

About The User Manual:
If you need the electronic user manual, you can contact our customer service to get it.

About Barebone:
Barebone does not contain RAM, OS, SSD, WIFI, Bluetooth.

Others：
If you any have customization requirements, please confirm the details with our customer service.
