Describe：

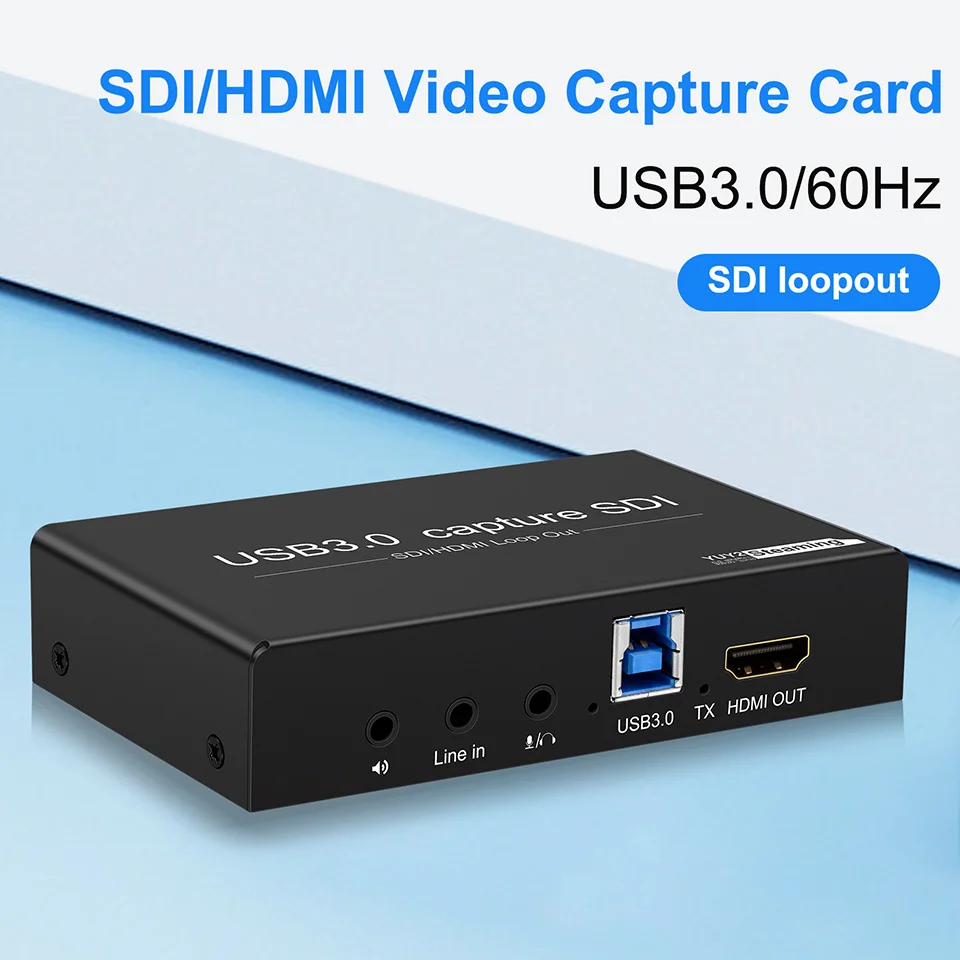

USB 3.0 Video Audio Capture Card 1080P60fps SDI/HD to USB 3.0 Capture Card Device with SDI Loopout for Camera PC Live Streaming

This SDI/HD to USB3.0 video capture card allow capture video from SDI/HD signal source device, such as Xbox, PS4, switches, camcorders, digital SLR cameras. And connect to USB3.0 devices(such as laptops, desktops, etc.) for final video editing. Capture video resolution up to 1080P@60fps.

This SDI video capture card also with SDI signal loop output, connect to additional sdi monitor, can be viewed on the big screen.

Compatible with Windows, Linux, Mac OS X and other systems. Plug and play. No external power supply is required. Easy live streaming via YouTube or Twitch.

Features:

Single channel HD or SDI video signal input

Press key to switch input channel and power down memory function

The input and output video signals can reach 1080P60FPS

Support YUV422 video output

UVC, UAC audio and video capture, no need to install driver, real PnP

Low power consumption, no need for external power adapter, direct USB power

Support USB3.0, 360MB/s transmission bandwidth, compatible with USB2.0

The video processing is completed by the acquisition rod and does not occupy the host CPU.

Automatically judge the input video format and automatically transform it to the specified output size

USB3.0 output: 1920×1080, 1920x9601680x1050, 1280×720, 1024x768960x540, 850×480, 720×576, 720×540, 720×480, 720×404, 704×576, 640×480, 640×360 ; USB2.0 output: 720×480, 720×404, 640×480, 640×360, 320×240, 320×180

Support 3.5mm audio output

Support MIC, allowing game enthusiasts to stream voice in real time, record voice and add their own voice to the game, so as to smoothly mix line audio and microphone audio into the game

NOTE: The HDMI output signal is the same as the USB3.0 interface acquisition signal. The HDMI output interface signal depends on the signal source collected by the USB3.0 interface. Allow you to connect to additional HDMI monitor, enjoy the big screen.

Capture software links:

These are some free software links, you can download it and try it in your computer.
https://potplayer.en.softonic.com/
https://obsproject.com/
https://amcap.en.softonic.com/download

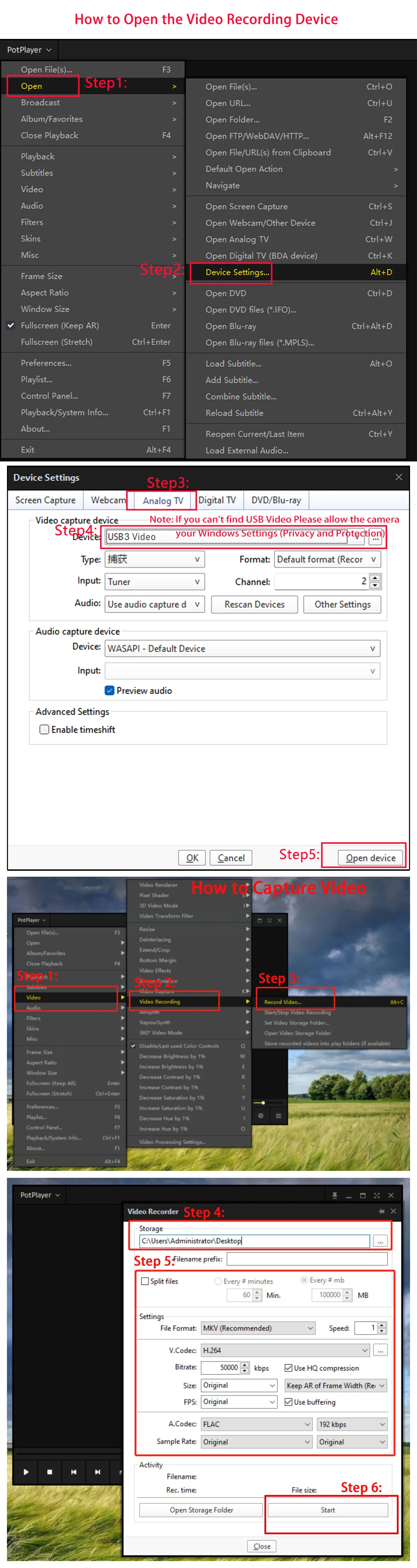

And This capture card does not work immediately after being connected. You need to open your connected device in the third-party software settings, and then you can start to capture video.

Specifications:

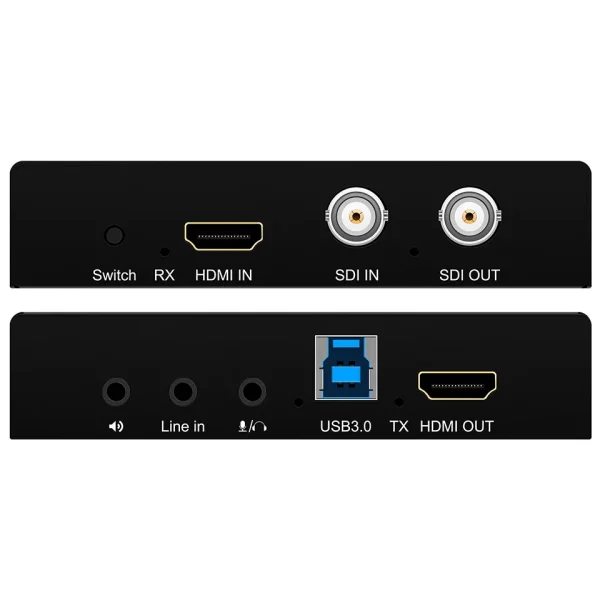

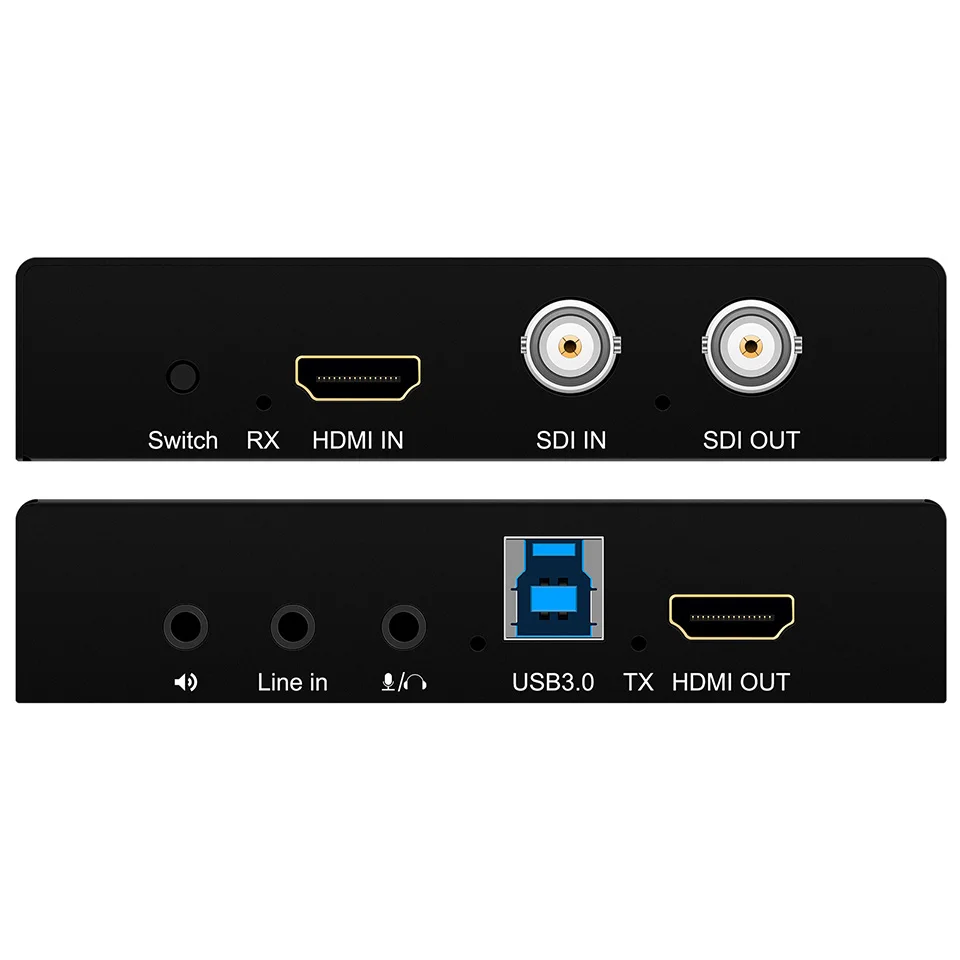

Video input: 1 x HD/3G- SDI l; 1 x 1080P60 HDMI

Audio input: 1 x LPCM

SDI input format; SD/HD/3G-SDI，Conform to SMPTE 259/274/296/372/424/425/292

HDMI input format：Support HDMI1.4a, 1080P/60HZ 8-bit, (RGB,YUV)

Transmission speed：HDMI：165MHZ；SDI：1.485Gb/s，2.97Gb/s

Output color space: YUY2

Operating systems：Windows 7/8/10/11，Windows Server 2003/2008 R2 Linux(Kernel version 2.6.38 and above)，OS X(10.8 and above)

Compatible software: Windows Media Encoder,Adobe Flash Media Live Encoder,Real Producer Plus,VLC,Wirecast…

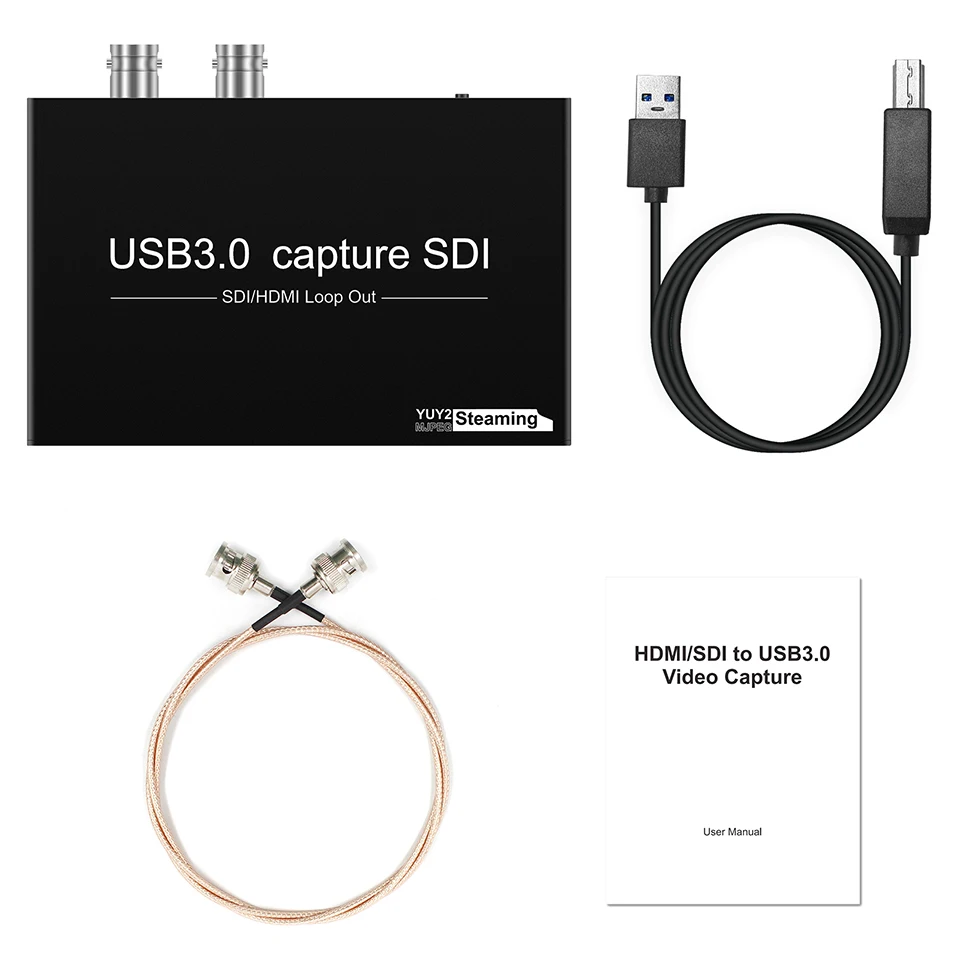

Package Lists:

1 x SDI/HD to USB3.0 Capture Card Device
